34-326

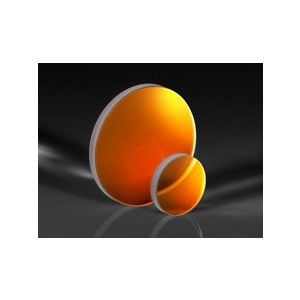

Optical Lens by Edmund Optics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Edmund Optics.

The 34-326 from Edmund Optics is a Optical Lens with Wavelength Range 587.6 nm, Center Thickness 5.8 mm, Diameter 12.7 mm, Radius 8.25 mm. More details for 34-326 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    34-326
  • Manufacturer
    Edmund Optics
  • Description
    12.7mm Dia. x 18mm FL, Shortwave Ultra-Low Broadband AR Laser Lens

General Parameters

  • Sub Type
    Plano-Convex Lens
  • Lens Shape
    Spherical Lens
  • Wavelength Range
    587.6 nm
  • Design Wavelength
    587.6 nm
  • Back Focal Length(BFL)
    13.76 mm
  • Effective Focal Length(EFL)
    18 mm
  • Center Thickness
    5.8 mm
  • Center Thickness Tolerance
    ±0.1 mm
  • Diameter
    12.7 mm
  • Radius
    8.25 mm
  • Centration Error
    3 arcmin
  • Numerical Aperture
    0.33
  • Coating
    Rabs <0.1% 266 - 532nm
  • Substrate/Material
    UV Grade Fused Silica
  • Surface Accuracy
    λ/10
  • Surface Quality
    10-5 scratch-dig
  • RoHS
    Yes
