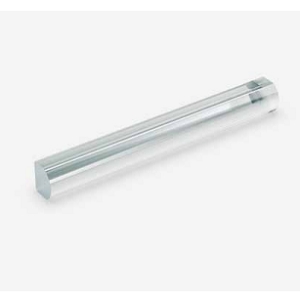

FAC 450

Optical Lens by FISBA
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to FISBA.

The FAC 450 from FISBA is a Optical Lens with Wavelength Range 790 to 990 nm, Focal Length 450 µm, Center Thickness 0.75 mm, Edge Thickness(ET) 0.64 mm. More details for FAC 450 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FAC 450
  • Manufacturer
    FISBA
  • Description
    790 to 990 nm Fast Axis Collimator Lenses (FACs)

General Parameters

  • Lens Type
    FAC Lenses
  • Wavelength Range
    790 to 990 nm
  • Focal Length
    450 µm
  • Back Focal Length(BFL)
    100 µm
  • Effective Focal Length(EFL)
    450 µm
  • Dimension
    0.75 x 0.64 mm (H x T)
  • Center Thickness
    0.75 mm
  • Edge Thickness(ET)
    0.64 mm
  • Numerical Aperture
    0.8
  • Substrate/Material
    Glass
  • Note
    Residual Diverence: ±1.60 mrad

Applications

  • Application
    Diode Laser Systems, Fiber Laser Pumps, Disk Laser Pumps, Solid-state Laser Pumps, LiDAR Systems
