DCV2306

Optical Lens by Foctek Photonics
Request Quote

Note: Your Quotation Request will be directed to Foctek Photonics.

The DCV2306 from Foctek Photonics is a Optical Lens with Wavelength Range 2306 nm, Focal Length -150 mm, Center Thickness 2 mm, Diameter 25.4 mm, Radius 138.34 mm. More details for DCV2306 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DCV2306
  • Manufacturer
    Foctek Photonics

General Parameters

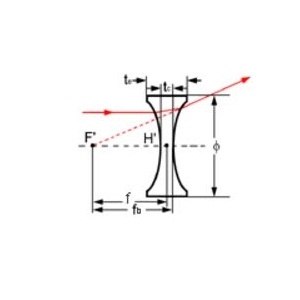

  • Sub Type
    Double-Concave Lens
  • Lens Shape
    Spherical Lens
  • Wavelength Range
    2306 nm
  • Design Wavelength
    546.1 nm
  • Focal Length
    -150 mm
  • Focal Length Tolerance
    ±2%
  • Center Thickness
    2 mm
  • Diameter
    25.4 mm
  • Radius
    138.34 mm
  • Radius 1
    138.34 mm
  • Clear Aperture
    0.85
  • Diameter Tolerance
    +0.0-0.15 mm
  • Edge Thickness(ET)
    3.2 mm
  • Centration Error
    3 arcmin
  • Chamfers
    0.25 mm x 45 Degree
  • Coating
    Uncoated
  • Substrate/Material
    Fused Silica
  • Surface Quality
    60-40 scratch-dig
  • Note
    Irregularity:-0.5
