AC400

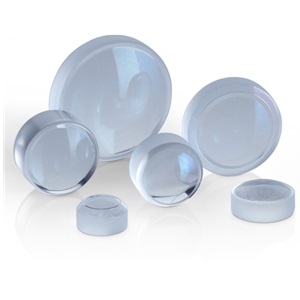

Optical Lens by IMM Photonics GmbH
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IMM Photonics GmbH.

The AC400 from IMM Photonics GmbH is a Optical Lens with Wavelength Range 650 nm, Focal Length 22 mm, Center Thickness 2 mm, Diameter 6 mm, Edge Thickness(ET) 1.63 mm. More details for AC400 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AC400
  • Manufacturer
    IMM Photonics GmbH
  • Description
    650 nm, 22 mm Focal Length Precision glass asphere Lens with 0.11 NA

General Parameters

  • Sub Type
    Precision Aspheric Lens
  • Lens Shape
    Aspheric Lens
  • Wavelength Range
    650 nm
  • Design Wavelength
    650 nm
  • Focal Length
    22 mm
  • Back Focal Length(BFL)
    20.809 mm
  • Center Thickness
    2 mm
  • Diameter
    6 mm
  • Clear Aperture
    4.8 mm
  • Edge Thickness(ET)
    1.63 mm
  • Numerical Aperture
    0.11
  • Coating
    AR Coating
  • Substrate/Material
    Optical Crown Glass
  • Note
    Weight: 0.16 g, FR: 0.7 mm, Wavefront deformation: 0.02 λ RMS

Applications

  • Application
    Laser diode modules and collimators, Sensors, Industrial and life science applications
