GCL-010405

Optical Lens by Kryptronic Technologies
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Kryptronic Technologies.

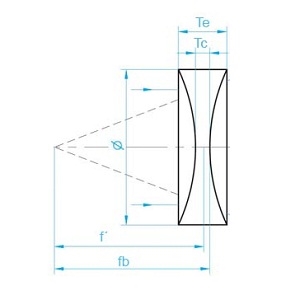

The GCL-010405 from Kryptronic Technologies is a Optical Lens with Focal Length -50.8 mm, Center Thickness 3 mm, Diameter 25.4 mm, Edge Thickness(ET) 6.2 mm. More details for GCL-010405 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    GCL-010405
  • Manufacturer
    Kryptronic Technologies

General Parameters

  • Sub Type
    Bi-Concave Lens
  • Lens Shape
    Spherical Lens
  • Focal Length
    -50.8 mm
  • Back Focal Length(BFL)
    -51.8 mm
  • Thickness Tolerance
    ± 2%
  • Center Thickness
    3 mm
  • Center Thickness Tolerance
    ±0.1 mm
  • Diameter
    25.4 mm
  • Clear Aperture
    22.86
  • Edge Thickness(ET)
    6.2 mm
  • Centration Error
    3 arc minutes
  • Coating
    MgF2 AR Coated
  • Substrate/Material
    N-BK7
  • Surface Quality
    60-40 scratch-dig
  • Note
    Fringe: 1 to 5, Irregularity of Fringes: 0.2 to 0.5
