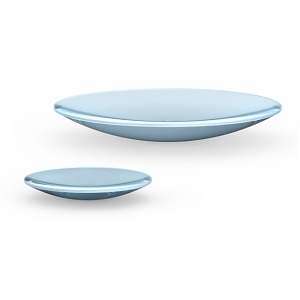

PCX-F700-UVFS-25.4-ET2.0-AR548-AR548

Optical Lens by OPTOMAN
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OPTOMAN.

The PCX-F700-UVFS-25.4-ET2.0-AR548-AR548 from OPTOMAN is a Optical Lens with Wavelength Range 1030 nm, Focal Length 700 mm, Center Thickness 2.251 mm, Diameter 25.4 mm, Radius 322.0545 mm. More details for PCX-F700-UVFS-25.4-ET2.0-AR548-AR548 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PCX-F700-UVFS-25.4-ET2.0-AR548-AR548
  • Manufacturer
    OPTOMAN
  • Description
    1030 nm, UV Grade Fused Silica with a Focal Length 700 mm

General Parameters

  • Sub Type
    Plano-Convex Lens
  • Lens Shape
    Spherical Lens
  • Angle of Incidence
    0 Degree
  • Wavelength Range
    1030 nm
  • Focal Length
    700 mm
  • Focal Length Tolerance
    ±1%
  • Center Thickness
    2.251 mm
  • Chips
    <0.5 mm
  • Center Thickness Tolerance
    ±0.1 mm
  • Diameter
    25.4 mm
  • Radius
    322.0545 mm
  • Laser Induced Damage Threshold (LIDT)
    >0.5 J/cm2, 1030 nm, 500 fs, 10 kHz
  • Clear Aperture
    >80%
  • Diameter Tolerance
    +0/0.1 mm
  • Edge Thickness(ET)
    2 mm
  • Edge Thickness Tolerance(Te)
    ±0.1 mm
  • Centration Error
    <3 arcmin
  • Chamfers
    0.2-0.4 x 45 Degree
  • Radius of Curvature
    S1: 322.0545 mm (Convex)
  • Coating
    S1/S2: AR<0.1% @ 1030 nm
  • Substrate/Material
    UVFS (JGS1)
  • ROC Tolerance
    ±1%
  • Surface Quality
    20-10 scratch-dig
  • Surface Irregularity(S1/S2)
    λ/6 per CA
