LN 615

Optical Lens by ORAFOL Fresnel Optics GmbH
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ORAFOL Fresnel Optics GmbH.

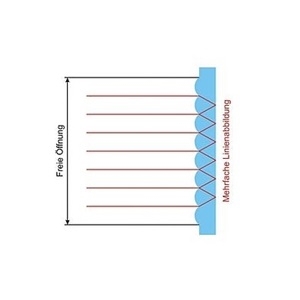

Lenticulars have linear structures where every groove has a small radius creating multiple line images. They are primarily used for projection screens and three dimensional images.Radius: 0.380, Facet Spacing: 0.763, Clear Aperture (Length x Width): Ø 89.4 mm, Thickness: 1.8.All dimensions in mm.Focal lengths listed apply to 546nm in PMMA (max. tolerance ± 5%).The outside size may be up to 5 - 20mm beyond the clear aperture.The standard thickness is 1.8mm ± 0.3.Other dimensions or special trimmings can be realised upon request.Special designs possible on request.

Product Specifications

View similar products

Product Details

  • Part Number
    LN 615
  • Manufacturer
    ORAFOL Fresnel Optics GmbH
  • Description
    Lenticular Plano-Convex Lenses

General Parameters

  • Sub Type
    Plano-Convex Lens
  • Lens Shape
    Spherical Lens, Lenticular Lens
  • Thickness Tolerance
    ±0.3 mm
  • Center Thickness
    1.8 mm
  • Radius
    0.380 mm
  • Clear Aperture
    (Dia) 89.4 mm
  • Substrate/Material
    Polymethyl Methacrylate (PMMA)
  • Note
    Facet Spacing: 0.763 mm
