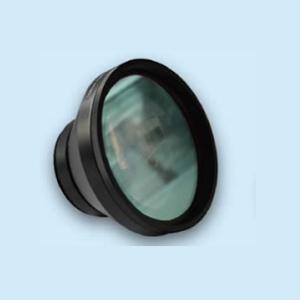

STH-1064-170-254-8

Optical Lens by Sintec Optronics
609 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sintec Optronics.

The STH-1064-170-254-8 from Sintec Optronics is a Optical Lens with Wavelength Range 1064 nm, Focal Length 254 mm, Diameter 8 mm. More details for STH-1064-170-254-8 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    STH-1064-170-254-8
  • Manufacturer
    Sintec Optronics
  • Description
    1064 nm Fused Silica, Zinc Selenide, Germanium F-Theta Lenses

General Parameters

  • Lens Type
    F-Theta Lenses
  • Wavelength Range
    1064 nm
  • Focal Length
    254 mm
  • Effective Focal Length(EFL)
    254 mm
  • Diameter
    8 mm
  • Apex Angle
    ±25 Degree ( full diagonal scan angle)
  • Substrate/Material
    Fused Silica, Zinc Selenide, Germanium
  • Note
    Working Distance: 283 mm, Scan area: 170 x 170 mm, FSD: 62 mm, Mirrors L2/L1: 45209 mm, Mount thread: M39 x 1/M55 x 1

Applications

  • Application
    Material processing, Drilling, Welding, Cutting, Microscopy, Ophthalmology
