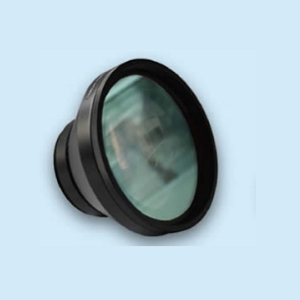

STH-1064-70-100-20

Optical Lens by Sintec Optronics
609 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sintec Optronics.

The STH-1064-70-100-20 from Sintec Optronics is a Optical Lens with Wavelength Range 1064 nm, Focal Length 100 mm, Diameter 20 mm. More details for STH-1064-70-100-20 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    STH-1064-70-100-20
  • Manufacturer
    Sintec Optronics
  • Description
    1064 nm Fused Silica, Zinc Selenide, Germanium F-Theta Lenses

General Parameters

  • Lens Type
    F-Theta Lenses
  • Wavelength Range
    1064 nm
  • Focal Length
    100 mm
  • Effective Focal Length(EFL)
    100 mm
  • Diameter
    20 mm
  • Apex Angle
    ±28 Degree ( full diagonal scan angle)
  • Substrate/Material
    Fused Silica, Zinc Selenide, Germanium
  • Note
    Working Distance: 125 mm, Scan area: 70 x 70 mm, FSD: 617 mm, Mirrors L2/L1: 18/24 mm, Mount thread: M85 x 1/M79 x 1

Applications

  • Application
    Material processing, Drilling, Welding, Cutting, Microscopy, Ophthalmology
