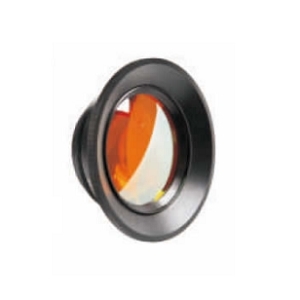

STY-F-200-10.6

Optical Lens by Sintec Optronics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sintec Optronics.

The STY-F-200-10.6 from Sintec Optronics is a Optical Lens with Wavelength Range 10.6 µm, Focal Length 200 mm, Diameter 15 mm (Input). More details for STY-F-200-10.6 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    STY-F-200-10.6
  • Manufacturer
    Sintec Optronics
  • Description
    10.6 µm Fused Silica, Zinc Selenide, CaF2 F-Theta Lenses

General Parameters

  • Lens Type
    F-Theta Lenses
  • Wavelength Range
    10.6 µm
  • Focal Length
    200 mm
  • Effective Focal Length(EFL)
    200 mm
  • Diameter
    15 mm (Input)
  • Apex Angle
    ±25 Degree (full diagonal scan angle)
  • Substrate/Material
    Fused Silica, Zinc Selenide, CaF2
  • Note
    Working Distance: 185.7 nm, Scan area: (Dia)198/140 x 140 mm, FSD: 258.64 mm, Outside Diameter: 90.2 x 26.5 mm (L), Mount thread: M85 x 1

Applications

  • Application
    Material processing, Drilling, Welding, Cutting, Microscopy, Ophthalmology
