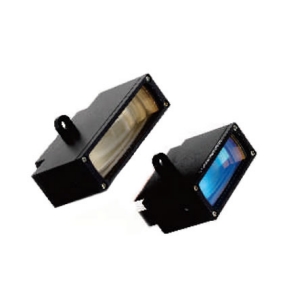

STY-F-255-20-1030-1080-80x10

Optical Lens by Sintec Optronics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sintec Optronics.

The STY-F-255-20-1030-1080-80x10 from Sintec Optronics is a Optical Lens with Wavelength Range 1064 nm, Focal Length 255 mm, Diameter 20 mm (Input). More details for STY-F-255-20-1030-1080-80x10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    STY-F-255-20-1030-1080-80x10
  • Manufacturer
    Sintec Optronics
  • Description
    1064 nm Optical Crown Glass, Fused Silica F-Theta Lenses

General Parameters

  • Lens Type
    F-Theta Lenses
  • Wavelength Range
    1064 nm
  • Focal Length
    255 mm
  • Effective Focal Length(EFL)
    255 mm
  • Diameter
    20 mm (Input)
  • Apex Angle
    ±10 Degree (full diagonal scan angle)
  • Substrate/Material
    Optical Crown Glass, Fused Silica
  • Note
    Working Distance: 320.34 mm,Scan area: 80 x 10 mm, FSD: 30 µm, Outside Diameter: 90 x 49 x 82 mm, Mount thread: D4.5 x 285 x 1

Applications

  • Application
    Material processing, Drilling, Welding, Cutting, Microscopy, Ophthalmology
