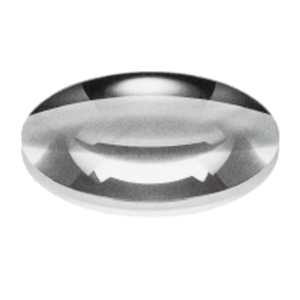

TS-0200S

Optical Lens by Sugitoh
Request Quote

Note: Your Quotation Request will be directed to Sugitoh.

The TS-0200S from Sugitoh is a Optical Lens with Wavelength Range 587.6 nm, Focal Length 3 mm, Center Thickness 1.5 mm, Diameter 3 mm, Edge Thickness(ET) 0.76 mm. More details for TS-0200S can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TS-0200S
  • Manufacturer
    Sugitoh
  • Description
    587.6 nm Bi-Convex Lens with 3 mm Focal Length

General Parameters

  • Sub Type
    Bi-Convex Lens
  • Lens Shape
    Spherical Lens
  • Wavelength Range
    587.6 nm
  • Design Wavelength
    587.6 nm
  • Focal Length
    3 mm
  • Focal Length Tolerance
    ±2%
  • Back Focal Length(BFL)
    2.3 mm
  • Center Thickness
    1.5 mm
  • Center Thickness Tolerance
    ±0.2 mm
  • Diameter
    3 mm
  • Diameter Tolerance
    +0/-0.1 mm
  • Edge Thickness(ET)
    0.76 mm
  • Chamfers
    0.1 mm
  • Refractive index
    1.523/nd, 1.5251/ne
  • Substrate/Material
    B270
  • Surface Quality
    60-40 scratch-dig
  • Note
    Decentering: 3 minutes

Applications

  • Application
    Condensing lens, Objective lens, Magnifying glass, photographic film or optical sensors, Image relay lens
