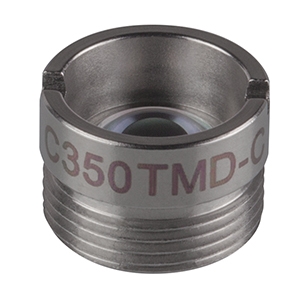

C350TMD-Cc

Optical Lens by Thorlabs Inc

Note: Your Quotation Request will be directed to Thorlabs Inc.

The C350TMD-Cc from Thorlabs Inc is a Optical Lens with Wavelength Range 1050 to 1700 nm, Focal Length 4.50 mm, Diameter 8.2 mm. More details for C350TMD-Cc can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    C350TMD-Cc
  • Manufacturer
    Thorlabs Inc
  • Description
    f = 4.50 mm, NA = 0.43, Mounted Geltech Aspheric Lens, AR: 1050-1700 nm

General Parameters

  • Lens Shape
    Aspheric Lens
  • Wavelength Range
    1050 to 1700 nm
  • Design Wavelength
    980 nm
  • Focal Length
    4.50 mm
  • Effective Focal Length(EFL)
    4.50 mm
  • Diameter
    8.2 mm
  • Magnification
    Infinity
  • Coating
    AR Coated
  • Substrate/Material
    D-ZK3
