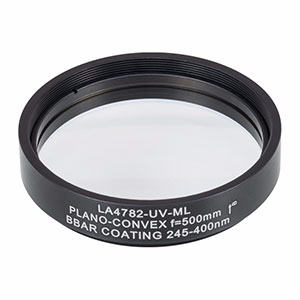

LA4782-UV-ML

Optical Lens by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The LA4782-UV-ML from Thorlabs Inc is a Optical Lens with Wavelength Range 245 to 400 nm, Focal Length 500 mm, Center Thickness 4.4 mm, Diameter 50.8 mm (2"), Radius 230 mm. More details for LA4782-UV-ML can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LA4782-UV-ML
  • Manufacturer
    Thorlabs Inc
  • Description
    2" UVFS Plano-Convex Lens, SM2-Threaded Mount, f = 500.0 mm, ARC: 245-400 nm

Temperature

  • Operating Temperature
    ±1%

General Parameters

  • Sub Type
    Plano-Convex Lens
  • Lens Shape
    Spherical Lens
  • Wavelength Range
    245 to 400 nm
  • Design Wavelength
    546 nm
  • Focal Length
    500 mm
  • Focal Length Tolerance
    ±1%
  • Back Focal Length(BFL)
    497 mm
  • Center Thickness
    4.4 mm
  • Diameter
    50.8 mm (2")
  • Radius
    230 mm
  • Clear Aperture
    45.72 mm
  • Diameter Tolerance
    +0.00 mm / -0.10 mm
  • Edge Thickness(ET)
    3.0 mm
  • Centration Error
    3 arcmin
  • Refractive index
    1.46
  • Substrate/Material
    UV Fused Silica
  • Surface Quality
    40-20 scratch-dig
  • RoHS
    Yes
