IR501.0-12A

Optical Lens by Wavelength Opto-Electronic
743 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Wavelength Opto-Electronic.

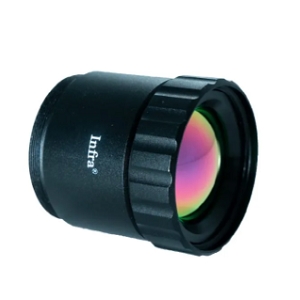

The IR501.0-12A from Wavelength Opto-Electronic is a Optical Lens with Wavelength Range 8 to 12 µm, Focal Length 50 mm. More details for IR501.0-12A can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IR501.0-12A
  • Manufacturer
    Wavelength Opto-Electronic
  • Description
    8 to 12 µm Wavelength 50 mm focal length for Optical lense

Temperature

  • Operating Temperature
    40 to 60 Degree C
  • Storage Temperature
    20 to 80 Degree C

General Parameters

  • Wavelength Range
    8 to 12 µm
  • Focal Length
    50 mm
  • Note
    Back Working Length: 16.5 mm, Mount: M34 x 0.75, Detector: 640 x 512, 12 µm
