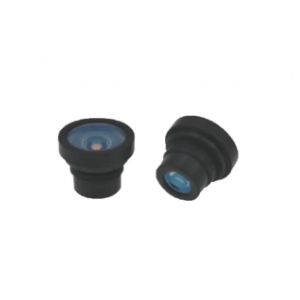

PG-TOF-1.53-1.2-V2

Optical Lens by Wavelength Opto-Electronic
Request Quote

Note: Your Quotation Request will be directed to Wavelength Opto-Electronic.

The PG-TOF-1.53-1.2-V2 from Wavelength Opto-Electronic is a Optical Lens with Wavelength Range 808 nm, Focal Length 2.6 mm. More details for PG-TOF-1.53-1.2-V2 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PG-TOF-1.53-1.2-V2
  • Manufacturer
    Wavelength Opto-Electronic
  • Description
    2.6 mm focal length for Zoom Objective Lenses

General Parameters

  • Lens Type
    Time-of-Flight (ToF) Lenses
  • Wavelength Range
    808 nm
  • Focal Length
    2.6 mm
  • Effective Focal Length(EFL)
    1.536 mm
  • Dimension
    144 x 125 x 90 mm FOV (DxHxV)
  • Aperture(f-number)
    1.2
  • Note
    MAX C.R.A: 6.97 Degree, Sensor size: 1/5 Inches, M7.0x0.35, M-TTL: 9.88

Applications

  • Application
    AR/VR, Drone Camera, Robot Sweeper, LiDAR for Autonomous Vehicle, Smart Home
