SL1-10.6-F360ZR-48

Optical Lens by Wavelength Opto-Electronic

Note: Your Quotation Request will be directed to Wavelength Opto-Electronic.

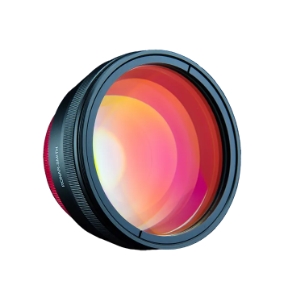

The SL1-10.6-F360ZR-48 from Wavelength Opto-Electronic is a Optical Lens with Wavelength Range 10600 nm, Focal Length 360 mm, Diameter 14 mm (Input Beam). More details for SL1-10.6-F360ZR-48 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SL1-10.6-F360ZR-48
  • Manufacturer
    Wavelength Opto-Electronic
  • Description
    10600 nm Zinc Selenide F-Theta Lenses

General Parameters

  • Lens Type
    F-Theta Lenses
  • Wavelength Range
    10600 nm
  • Focal Length
    360 mm
  • Effective Focal Length(EFL)
    360 mm
  • Diameter
    14 mm (Input Beam)
  • Substrate/Material
    Zinc Selenide
  • Note
    Scan field: 250 x 250 mm, Mount thread: M85x1, Working Distance: 343 mm
Click to view more product details on manufacturer's website
Request a Quote
