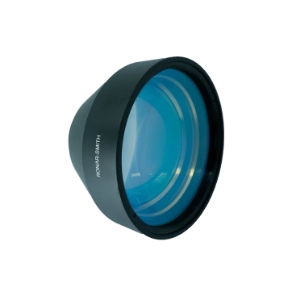

TSL-355-200-920Q-D14

Optical Lens by Wavelength Opto-Electronic
743 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Wavelength Opto-Electronic.

The TSL-355-200-920Q-D14 from Wavelength Opto-Electronic is a Optical Lens with Wavelength Range 343 to 355 nm, Focal Length 920 mm, Diameter 14 mm (Input Beam). More details for TSL-355-200-920Q-D14 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TSL-355-200-920Q-D14
  • Manufacturer
    Wavelength Opto-Electronic
  • Description
    343 to 355 nm Fused Silica F-Theta Lenses

General Parameters

  • Lens Type
    F-Theta Lenses
  • Wavelength Range
    343 to 355 nm
  • Focal Length
    920 mm
  • Effective Focal Length(EFL)
    920 mm
  • Diameter
    14 mm (Input Beam)
  • Substrate/Material
    Fused Silica
  • Note
    Scan field: 200 x 200 mm, Mount thread: M55x1, Working Distance: 1120 mm
Click to view more product details on manufacturer's website
