TSL-355-60-167Q

Optical Lens by Wavelength Opto-Electronic

Note: Your Quotation Request will be directed to Wavelength Opto-Electronic.

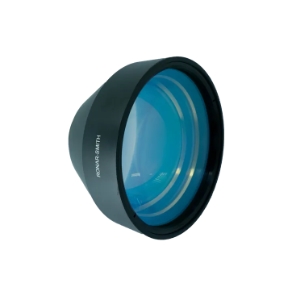

The TSL-355-60-167Q from Wavelength Opto-Electronic is a Optical Lens with Wavelength Range 343 to 355 nm, Focal Length 167 mm, Diameter 10 mm (Input Beam). More details for TSL-355-60-167Q can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TSL-355-60-167Q
  • Manufacturer
    Wavelength Opto-Electronic
  • Description
    343 to 355 nm Fused Silica F-Theta Lenses

General Parameters

  • Lens Type
    F-Theta Lenses
  • Wavelength Range
    343 to 355 nm
  • Focal Length
    167 mm
  • Effective Focal Length(EFL)
    167 mm
  • Diameter
    10 mm (Input Beam)
  • Substrate/Material
    Fused Silica
  • Note
    Scan field: 60 x 60 mm, Mount thread: M85x1, Working Distance: 222.6 mm
Click to view more product details on manufacturer's website
