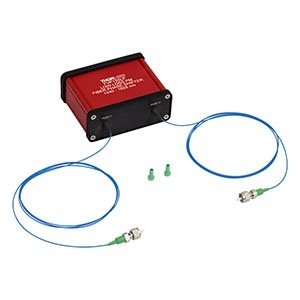

FVP155LP

Optical Phase Shifter by Thorlabs Inc

Note: Your Quotation Request will be directed to Thorlabs Inc.

The FVP155LP from Thorlabs Inc. is a Polarization-Maintaining (PM) Fiber Phase Shifter that operates at a wavelength of 1440 nm - 1625 nm. It has a phase shift of 55&pi (at 150 V) and capacitance of 48 nF. This low-loss piezo-based phase shifter has a half-wave voltage of 2.73 V and resonant frequency above 20 kHz. It has an insertion loss of less than 0.05 dB and a polarization extinction ratio greater than 18 dB. This optical phase shifter supports PM1550-XP fibers and is compatible with FC/APC connectors

The FVP155LP requires an AC supply voltage of up to 150 V and is available in a module that measures 85.1 mm x 66.5 mm x 34.3 mm (housing) & 85.1 mm x 89.4 mm x 34.3 mm (housing with connectors). It is ideal for optical phase shifter is ideal for fiber optic communication, interferometric sensors, Q-switching & mode-locking, testing & measurement, quantum optics, and quantum communication applications.

Product Specifications

Product Details

  • Part Number
    FVP155LP
  • Manufacturer
    Thorlabs Inc
  • Description
    1440 nm - 1625 nm, Fiber Phase Shifter for Q-switching & Mode-locking Applications

Applications

  • Application
    Fiber Optic Communication, Interferometric Sensors, Q-Switching and Mode-Locking, Testing and Measurement, Quantum Optics, Quantum Communications

General Parameters

  • Operating Wavelength
    1440 to 1625 nm
  • Insertion Loss
    <0.05 dB (Without Connectors)
  • Phase Voltage
    0 to 150 V
  • Half-Wave Voltage
    2.73 V ± 20%
  • Phase Shift / Stroke
    55π radians ± 20%
  • Resonant Frequency
    >20 kHz
  • Fiber Type
    PM1550-XP
  • Fiber Mode
    Polarization Maintaining
  • Type
    Piezo-Based, Fiber Based
  • Polarization Extinction Ratio
    >18 dB
  • Fiber Length
    1000 mm x 2 (each cable length 1000)
  • Capacitance
    48 nF ± 15%

Connections & Interface

  • Fiber Connectors
    FC/APC
  • RF Connector
    SMC - Male

Environmental Conditions

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    40 to 80 Degree C

Physical Properties

  • Dimensions
    85.1 x 89.4 x 34.3 mm (L x W x H)
