F1-8513HR

Optical Power Meter by Fosco Connect
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Fosco Connect.

The F1-8513HR from Fosco Connect is a Optical Power Meter with Wavelength Range 850 to 1550 nm, Calibrated Wavelength 1490 nm, Accuracy ±5%, Resolution 0.1 dB (HH Series), 0.01 dB (HR Series). More details for F1-8513HR can be seen below.

Product Specifications

Product Details

  • Part Number
    F1-8513HR
  • Manufacturer
    Fosco Connect
  • Description

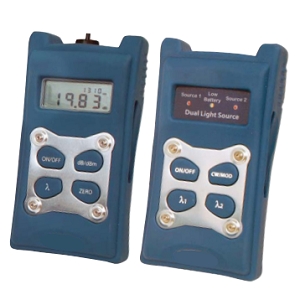

    850 to 1550 nm Hand held series power meter & light source with 2mm Germanium

General Parameters

  • Measurement Unit
    dBm
  • Wavelength Range
    850 to 1550 nm
  • Equipment Type
    Handheld
  • Detector Type
    Germanium (Ge)
  • Battery Type
    9V Alkaline
  • Calibrated Wavelength
    1490 nm
  • Auto off
    Yes
  • Dynamic Range
    -65 to 5 dB, -45 to 23 dB (CATV Version)
  • Output Power Range
    -17 dBm min (62.5/125 µm Fiber), -1 dBm min (9/125 µm Fiber)
  • Battery Life
    70 hours
  • Fiber Core Diameter
    9 µm, 62.5 µm
  • Accuracy
    ±5%
  • Resolution
    0.1 dB (HH Series), 0.01 dB (HR Series)

Connections & Interface

  • Optical Connector
    ST, FC, SC, LC, MTRJ, 1.25 mm UPP, 2.5 mm UPP
  • RF Connector
    SMA

Environmental Conditions

  • Operating Temperature
    -10 to 50 Degree C

Physical Properties

  • Dimensions
    6.25 x 3.25 x 1.25 Inches (L x W x H)
