OCPM-18

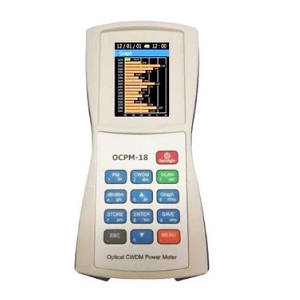

Optical Power Meter by Fosco Connect
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Fosco Connect.

The OCPM-18 from Fosco Connect is a Optical Power Meter with Wavelength Range 1270 to 1610 nm, Accuracy <±0.5 dB (Absolute accuracy), Resolution 0.01 dB (Power resolution). More details for OCPM-18 can be seen below.

Product Specifications

Product Details

  • Part Number
    OCPM-18
  • Manufacturer
    Fosco Connect
  • Description
    1270 to 1670 nm Optical CWDM Power Meter with InGaAs

General Parameters

  • Measurement Unit
    dB, dBm
  • Wavelength Range
    1270 to 1610 nm
  • Equipment Type
    Portable
  • Channels
    18
  • Battery Type
    Rechargeable Lithium-Polymer Battery
  • Dynamic Range
    -40 to 10 dBm
  • Battery Life
    600 min
  • Accuracy
    <±0.5 dB (Absolute accuracy)
  • Resolution
    0.01 dB (Power resolution)

Connections & Interface

  • Optical Connector
    SC/PC (Standard), FC, LC, ST Available

Environmental Conditions

  • Operating Temperature
    0 to 50 Degree C

Physical Properties

  • Dimensions
    78 x 155 x 35 mm
  • Weight
    0.25 kg

Technical Documents
Click to view more product details on manufacturer's website
