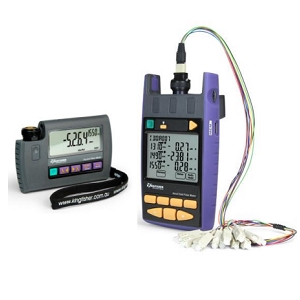

KI2600XL-GE5

Optical Power Meter by Kingfisher International

Note: Your Quotation Request will be directed to Kingfisher International.

The KI2600XL-GE5 from Kingfisher International is a Optical Power Meter with Measurement Range(Power) -30 to 15 dBm (for 660 to 820 nm, 1590 to 1650 nm), -40 to 15 dBm (for 850 to 1570 nm), Wavelength Range 600 to 1650 nm (Response wavelength), Calibrated Wavelength 660 to 1650 nm, Linearity 0.06 dB (Mid-range linearity), Resolution 0.01 dB. More details for KI2600XL-GE5 can be seen below.

Product Specifications

Product Details

  • Part Number
    KI2600XL-GE5
  • Manufacturer
    Kingfisher International
  • Description
    600 to 1650 nm Large Area MPO Optical Power Meter with Ge

General Parameters

  • Measurement Unit
    dB, dBm
  • Measurement Range(Power)
    -30 to 15 dBm (for 660 to 820 nm, 1590 to 1650 nm), -40 to 15 dBm (for 850 to 1570 nm)
  • Wavelength Range
    600 to 1650 nm (Response wavelength)
  • Equipment Type
    Handheld
  • Detector Type
    Germanium (Ge)
  • Detector Size
    5 mm
  • Calibrated Wavelength
    660 to 1650 nm
  • Auto off
    Selectable
  • Relative Humidity
    0 to 95%
  • Tone Detection
    150 to 9999 Hz
  • Power Range
    -30 to 15 dBm (for 660 to 820 nm, 1590 to 1650 nm), -40 to 15 dBm (for 850 to 1570 nm)
  • Memory
    1,000 records of 4 wavelengths test
  • Polarization Sensitivity
    <0.05 dB
  • Power Calibration Accuracy
    ±1%
  • Battery Life
    Up to 1000 Hours
  • Warranty
    3 years
  • Linearity
    0.06 dB (Mid-range linearity)
  • Resolution
    0.01 dB

Connections & Interface

  • Interface
    Micro-USB or USB-C for power & software / USB-A Flash Drive
  • Optical Connector
    SC, LC, MPO, FC, UPP

Environmental Conditions

  • Operating Temperature
    -15 to 55 Degree C
  • Storage Temperature
    -25 to 70 Degree C

Physical Properties

  • Dimensions
    124 x 81 x 25 mm
  • Weight
    1.5 kg (Shipping Weight), 0.42 kg (Unit weight)
