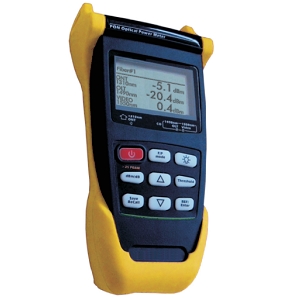

The PON-2M from Optical Wavelength Laboratories is a Optical Power Meter with Measurement Range(Power) -50 to 25 dBm, Wavelength Range 1310 nm, 1490 nm, 1550 nm, Accuracy ±0.2 dB, ±0.5 dB. More details for PON-2M can be seen below.

Product Specifications

Product Details

  • Part Number
    PON-2M
  • Manufacturer
    Optical Wavelength Laboratories

Applications

  • Applications
    FTTH/PON networks

General Parameters

  • Measurement Unit
    dB, dBm
  • Measurement Range(Power)
    -50 to 25 dBm
  • Wavelength Range
    1310 nm, 1490 nm, 1550 nm
  • Equipment Type
    Handheld
  • Battery Type
    3 AAA batteries or AC adapter
  • Power Range
    -50 to 25 dBm
  • Insertion Loss
    <1.5 dB
  • Battery Life
    36 hours (Operation time)
  • Accuracy
    ±0.2 dB, ±0.5 dB

Connections & Interface

  • Optical Connector
    SC/UPC

Environmental Conditions

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -20 to 60 Degre C

Physical Properties

  • Dimensions
    7.48 x 3.54 x 1.57 Inches
  • Weight
    1 pound
