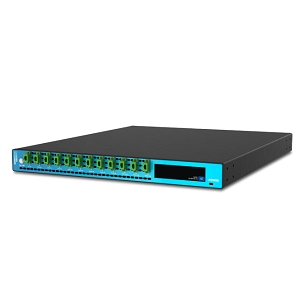

1410-EPIQ

Optical Power Meter by Quantifi Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Quantifi Photonics.

The 1410-EPIQ from Quantifi Photonics is a Optical Power Meter with Measurement Range(Power) -60 to 10 dBm, Wavelength Range 1250 to 1650 nm, Linearity ±0.1 dB @ -40 to 0 dBm, ±0.2 dB @ -50 to -40 dBm. More details for 1410-EPIQ can be seen below.

Product Specifications

Product Details

  • Part Number
    1410-EPIQ
  • Manufacturer
    Quantifi Photonics
  • Description
    1250 to 1650 nm optical power meter with MTP Elite Male, key up, SMF Fiber, APC Optical connectors

Applications

  • Applications
    Fiber optic manufacturing test, Power measurement integration for automated test systems, Fiber optic laser test and characterization, General and versatile R&D and production tool

General Parameters

  • Measurement Unit
    dB, dBm
  • Measurement Range(Power)
    -60 to 10 dBm
  • Wavelength Range
    1250 to 1650 nm
  • Equipment Type
    Benchtop / Rackmount
  • Detector Type
    Indium Gallium Arsenide (InGaAs)
  • Light Source
    LED
  • Damage level
    12 dBm
  • Fiber Type
    Single Mode
  • Power Range
    -60 to 10 dBm
  • Uncertainty
    ±0.29 dB (Typical) | ±0.50 dB (Max)
  • Linearity
    ±0.1 dB @ -40 to 0 dBm, ±0.2 dB @ -50 to -40 dBm

Connections & Interface

  • Optical Connector
    MTP Elite Male, key up, SMF Fiber, APC

Environmental Conditions

  • Operating Temperature
    5 to 45 Degree C
  • Storage Temperature
    -40 to 70 Degree C

Physical Properties

  • Dimensions
    44.1 x 440 x 528 mm (H x W x D)
  • Weight
    3 kg
