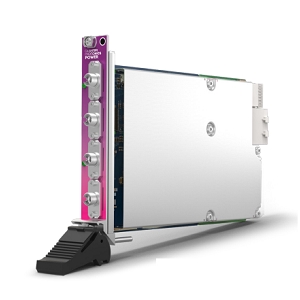

1601-PXI

Optical Power Meter by Quantifi Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Quantifi Photonics.

The 1601-PXI from Quantifi Photonics is a Optical Power Meter with Measurement Range(Power) -50 to 20 dBm, Wavelength Range 1260 to 1650 nm, Linearity ±0.1 dB @ - 40 dBm to 0 dBm, ±0.15 dB @ -50 dBm to - 40 dBm. More details for 1601-PXI can be seen below.

Product Specifications

Product Details

  • Part Number
    1601-PXI
  • Manufacturer
    Quantifi Photonics
  • Description
    1260 to 1650 nm optical power meter with Inline fiber tap PD

Applications

  • Applications
    Fiber optic manufacturing test, Power measurement integration for automated test systems, Fiber optic laser test and characterization, General and versatile R&D and production tool

General Parameters

  • Measurement Unit
    dB, dBm
  • Measurement Range(Power)
    -50 to 20 dBm
  • Wavelength Range
    1260 to 1650 nm
  • Equipment Type
    PXIe
  • Detector Type
    Inline fiber tap PD
  • Damage level
    24 dBm
  • Fiber Type
    Single Mode
  • Power Range
    -50 to 20 dBm
  • Insertion Loss
    0.15 dB (Typical), 0.25 dB (Max)
  • Uncertainty
    ±0.34 dB (Typical), ±0.55 dB (Max) (Uncertainty at reference conditions)
  • Return Loss
    >50 dB
  • Linearity
    ±0.1 dB @ - 40 dBm to 0 dBm, ±0.15 dB @ -50 dBm to - 40 dBm

Connections & Interface

  • Optical Connector
    FC/APC, FC/PC, SC/PC, SC/APC

Environmental Conditions

  • Storage Temperature
    -40 to 70 Degree C

Physical Properties

  • Dimensions
    130 x 20 x 215 mm (H x W x D)
  • Weight
    0.4 kg
