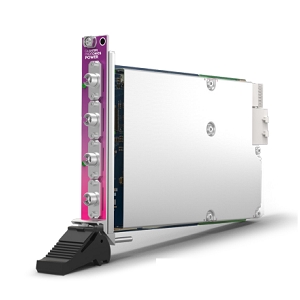

1611-PXI

Optical Power Meter by Quantifi Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Quantifi Photonics.

The 1611-PXI from Quantifi Photonics is a Optical Power Meter with Measurement Range(Power) -50 to 20 dBm, Wavelength Range 800 to 900 nm, Linearity ±0.25 dB @ 0 to -30 dBm. More details for 1611-PXI can be seen below.

Product Specifications

Product Details

  • Part Number
    1611-PXI
  • Manufacturer
    Quantifi Photonics
  • Description
    800 to 900 nm optical power meter with Inline fiber tap PD

Applications

  • Applications
    Fiber optic manufacturing test, Power measurement integration for automated test systems, Fiber optic laser test and characterization, General and versatile R&D and production tool

General Parameters

  • Measurement Unit
    dB, dBm
  • Measurement Range(Power)
    -50 to 20 dBm
  • Wavelength Range
    800 to 900 nm
  • Equipment Type
    PXIe
  • Detector Type
    Inline fiber tap PD
  • Damage level
    23 dBm
  • Power Range
    -50 to 20 dBm
  • Insertion Loss
    0.15 dB (Typical), 0.25 dB (Max)
  • Return Loss
    >20 dB
  • Linearity
    ±0.25 dB @ 0 to -30 dBm

Connections & Interface

  • Optical Connector
    FC/APC, FC/PC, SC/PC, SC/APC

Environmental Conditions

  • Storage Temperature
    -40 to 70 Degree C

Physical Properties

  • Dimensions
    130 x 20 x 215 mm (H x W x D)
  • Weight
    0.4 kg
