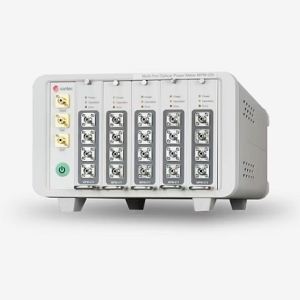

MPM-211

Optical Power Meter by Santec Corporation
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Santec Corporation.

The MPM-211 from Santec Corporation is a Optical Power Meter with Measurement Range(Power) 16 dBm, Wavelength Range 1240 to 1680 nm, 1250 to 1630 nm (Specification), Linearity ±0.03 dB, Resolution 0.001 dB (Power resolution). More details for MPM-211 can be seen below.

Product Specifications

Product Details

  • Part Number
    MPM-211
  • Manufacturer
    Santec Corporation
  • Description
    1240 to 1680 nm Multi-Port Optical Power Meter

Applications

  • Applications
    Optical power measurements, IL and PDL measurements

General Parameters

  • Measurement Unit
    dB, dBm
  • Measurement Range(Power)
    16 dBm
  • Wavelength Range
    1240 to 1680 nm, 1250 to 1630 nm (Specification)
  • Equipment Type
    Module with Connector
  • Detector Type
    Indium Gallium Arsenide (InGaAs)
  • Dynamic Range
    -80 to 10 dBm, 45 dB (Fixed)
  • Power Range
    16 dBm
  • Polarization dependent response
    <0.023 to <0.03 dB (Polarization Dependent Responsivity)
  • Uncertainty
    ±5%
  • Linearity
    ±0.03 dB
  • Resolution
    0.001 dB (Power resolution)

Connections & Interface

  • Optical Connector
    FC
