FPM100B

Note: Your Quotation Request will be directed to SHANGHAI TARLUZ TELECOM TECH. CO., LTD.

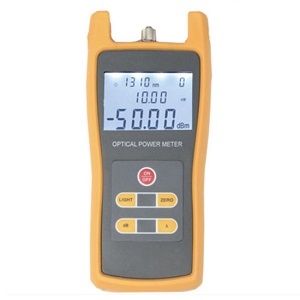

The FPM100B from SHANGHAI TARLUZ TELECOM TECH. CO., LTD is a Optical Power Meter with Measurement Range(Power) -50 to 26 dBm, Wavelength Range 800 to 1700 nm, Calibrated Wavelength 850 nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, Resolution 0.01 dB. More details for FPM100B can be seen below.

Product Specifications

Product Details

  • Part Number
    FPM100B
  • Manufacturer
    SHANGHAI TARLUZ TELECOM TECH. CO., LTD
  • Description
    Calibrated Wavelength: 850, 980, 1300, 1310, 1490, 1550nm; measurement rage: -50 to 26 dBm

Applications

  • Applications
    FTTx PON Network, Telecom Installation and Maintenance, CATV Network Installation and Maintenance, Fiber Optic Lab Testing, Other Fiber Optic Measurements

General Parameters

  • Measurement Unit
    mW, dBm, dB
  • Measurement Range(Power)
    -50 to 26 dBm
  • Wavelength Range
    800 to 1700 nm
  • Equipment Type
    Handheld
  • Detector Type
    Indium Gallium Arsenide (InGaAs)
  • Battery Type
    Alkaline Battery (3 AA 1.5V batteries)
  • Calibrated Wavelength
    850 nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm
  • Relative Humidity
    0 to 95%
  • Fiber Type
    Single Mode, Multi Mode
  • Power Range
    -50 to 26 dBm
  • Battery Life
    240 hours with 1.5V Battery
  • Uncertainty
    ±5%
  • Resolution
    0.01 dB

Connections & Interface

  • Optical Connector
    FC (interchangeable SC, ST) / as well as 2.5mm universal

Environmental Conditions

  • Operating Temperature
    -10 to 60 Degree C
  • Storage Temperature
    -25 to 70 Degree C

Physical Properties

  • Dimensions
    175 x 82 x 33 mm
  • Weight
    310 g
