PPM300

Request Quote

Note: Your Quotation Request will be directed to SHANGHAI TARLUZ TELECOM TECH. CO., LTD.

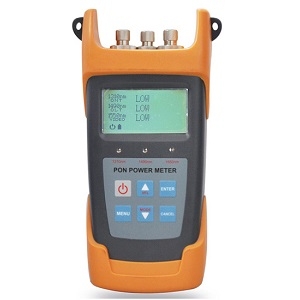

The PPM300 from SHANGHAI TARLUZ TELECOM TECH. CO., LTD is a Optical Power Meter with Measurement Range(Power) -40 to 20 dBm, Wavelength Range 1310 nm, 1490 nm, 1550 nm. More details for PPM300 can be seen below.

Product Specifications

Product Details

  • Part Number
    PPM300
  • Manufacturer
    SHANGHAI TARLUZ TELECOM TECH. CO., LTD
  • Description
    PON Power Meter, 1310/1490/1550nm, for FTTH GPON, EPON Network

Applications

  • Applications
    APON, BPON, GPON, EPON

General Parameters

  • Measurement Unit
    mW, dBm, dB
  • Measurement Range(Power)
    -40 to 20 dBm
  • Wavelength Range
    1310 nm, 1490 nm, 1550 nm
  • Equipment Type
    Handheld
  • Battery Type
    3 pcs 1.5V AA batteries
  • Relative Humidity
    0 to 95%
  • Power Range
    -40 to 20 dBm
  • Insertion Loss
    1.5 dB
  • Battery Life
    PON:90h OPM:100h VFL:50h

Connections & Interface

  • Interface
    USB
  • Optical Connector
    FC/APC, SC/APC, ST, male FC to female, LC

Environmental Conditions

  • Operating Temperature
    -10 to 60 Degree C
  • Storage Temperature
    -25 to 70 Degree C

Physical Properties

  • Dimensions
    192 x 102 x 50 mm (L x W x H)
  • Weight
    425 g
Click to view more product details on manufacturer's website
