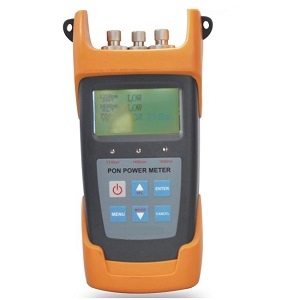

3213A

Optical Power Meter by Sunma International Industry Ltd.

Note: Your Quotation Request will be directed to Sunma International Industry Ltd..

The 3213A from Sunma International Industry Ltd. is a Optical Power Meter with Measurement Range(Power) -40 to 10 dBm, Wavelength Range 1260 to 1570 nm, Calibrated Wavelength 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm, Linearity ±0.1 dB, Resolution 0.01 dB. More details for 3213A can be seen below.

Product Specifications

Product Details

  • Part Number
    3213A
  • Manufacturer
    Sunma International Industry Ltd.

Applications

  • Applications
    FTTx application and maintenance

General Parameters

  • Measurement Unit
    dB, dBm, mW, µW, nW
  • Measurement Range(Power)
    -40 to 10 dBm
  • Wavelength Range
    1260 to 1570 nm
  • Equipment Type
    Handheld
  • Detector Type
    Indium Gallium Arsenide (InGaAs)
  • Battery Type
    3 pc 1.5 V battery
  • Calibrated Wavelength
    1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm
  • DC Output Voltage
    3.3 to 5.5 VDC
  • Fiber Type
    Single Mode
  • Power Range
    -40 to 10 dBm
  • Output Power Range
    15 to 25 dBm
  • Insertion Loss
    <1.5 dB
  • Battery Life
    90 hours (PON), 100 hours (OPM), 50 hours (VFL) (Operation hours)
  • Uncertainty
    ±0.5 dB (Connatural)
  • Fiber Core Diameter
    9/125 µm
  • Linearity
    ±0.1 dB
  • Resolution
    0.01 dB

Connections & Interface

  • Optical Connector
    FC/SC/ST Interchangeable/2.5 universal adapter

Environmental Conditions

  • Operating Temperature
    -10 to 60 Degree C
  • Storage Temperature
    -25 to 70 Degree C

Physical Properties

  • Weight
    425 g
