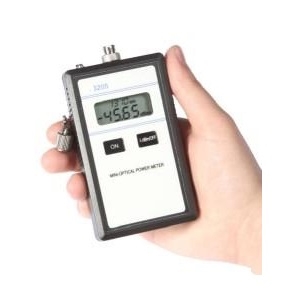

ST-3205A

Optical Power Meter by Sunma International Industry Ltd.
Request Quote

Note: Your Quotation Request will be directed to Sunma International Industry Ltd..

The ST-3205A from Sunma International Industry Ltd. is a Optical Power Meter with Measurement Range(Power) -60 to 3 dBm, Wavelength Range 800 to 1700 nm, Calibrated Wavelength 850 nm, 980 nm, 1310 nm, 1550 nm, Resolution 0.01 dB. More details for ST-3205A can be seen below.

Product Specifications

Product Details

  • Part Number
    ST-3205A
  • Manufacturer
    Sunma International Industry Ltd.

Applications

  • Applications
    Maintenance in Telecom, Maintenance CATV, Fiber Optic Lab Testing, Other Fiber Optic Measurements

General Parameters

  • Measurement Unit
    mW, dBm
  • Measurement Range(Power)
    -60 to 3 dBm
  • Wavelength Range
    800 to 1700 nm
  • Equipment Type
    Handheld
  • Detector Type
    Indium Gallium Arsenide (InGaAs)
  • Battery Type
    Alkaline Battery
  • Calibrated Wavelength
    850 nm, 980 nm, 1310 nm, 1550 nm
  • Relative Humidity
    0 to 95%
  • Power Range
    -60 to 3 dBm
  • Battery Life
    360 hours with three 1.5V batteries
  • Uncertainty
    ±0.5%
  • Resolution
    0.01 dB

Connections & Interface

  • Optical Connector
    FC(interchangeable SC,ST) / as well as 2.5mm universal

Environmental Conditions

  • Operating Temperature
    -10 to 60 Degree C
  • Storage Temperature
    -25 to 70 Degree C

Physical Properties

  • Dimensions
    115 x 60 x 20 mm
  • Weight
    105 g
Click to view more product details on manufacturer's website
