  5. MT9085A-053

MT9085A-053

Optical Time Domain Reflectometer (OTDR) by Anritsu Corporation
45 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Anritsu Corporation.

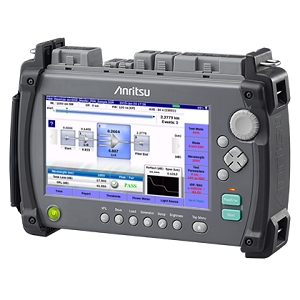

The MT9085A-053 from Anritsu Corporation is a Optical Time Domain Reflectometer (OTDR) with Optical Wavelength 1310 to 1550 nm, Dynamic Range 37.5 to 39 dB, Pulse Width 3 to 20000 ns, Distance Range 0.5 to 300 km (SM), 0.5 to 100 km (MM), DC Voltage 12 VDC. More details for MT9085A-053 can be seen below.

Product Specifications

Product Details

  • Part Number
    MT9085A-053
  • Manufacturer
    Anritsu Corporation
  • Description
    1310 to 1550 nm Wavelength 37.5 to 39 dB Dynamic Range Handheld OTDR

Environmental Conditions

  • Operating Humidity
    <80%
  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -20 to 60 Degree C

Connections & Interface

  • Interface
    USB 2.0, USB 1.1
  • Optical Connector
    FC
  • RF Connector
    2.5 mm
  • Wireless Interface
    WLAN, Bluetooth

General Parameters

  • Equipment Type
    Handheld
  • Dead Zone(Backscatter)
    5 to 5.5 m
  • Optical Wavelength
    1310 to 1550 nm
  • Battery Body Material
    Lithium-ion
  • Data Storage
    1 GB (Internal), Upto 32 GB (External)
  • Dead zone
    0.8 to 1 m (Fresnel)
  • Measurement Range
    -67 to 6 dBm
  • Display
    8-inch touch screen TFT-Color LCD
  • Distance Accuracy
    ±1 m ±3 x measurement distance x 10-5 ± marker resolution
  • Fiber Type
    Single Mode
  • IOR Setting
    1.300000 to 1.700000
  • Laser Safety
    Class 3R
  • Linearity
    ±0.1 dB
  • Dynamic Range
    37.5 to 39 dB
  • Output Optical Fiber
    10 to 125 µm
  • Modulation
    270 Hz to 2 kHz
  • Pulse Width
    3 to 20000 ns
  • Accuracy
    ±6.5%
  • Operation Mode
    CW
  • Distance Range
    0.5 to 300 km (SM), 0.5 to 100 km (MM)
  • Output Power
    -5 to 1.5 dBm
  • Output Stability
    <0.1 dB
  • Power Consumption
    4 to 20 W
  • Power Supply
    90 to 264 VAC, 50 to 60 Hz
  • Reflectance Accuracy
    ±2 dB (SM), ±4 dB (MM)
  • Sampling Point
    Upto 150001 points
  • Sampling Resolution
    0.05 to 60 m
  • Spectral Width (FWHM)
    <3 to 10 nm
  • DC Voltage
    12 VDC
  • Wavelength accuracy
    ±30 nm

Applications

  • Application
    Optical Loss/Power Measurement, Bi-directional Measurement, Realtime Measurement, Optical Communications Check Function, Connection Check Function, Network troubleshooting, Attenuation measurement

Physical Properties

  • Dimension
    Without Protector: 270 x 165 x 61 mm (W x H x D), With Protector: 284 x 200 x 77 mm (W x H x D)
  • Weight
    1.6 to 1.9 kg (Without Protector), 2.6 kg (With Protector)
