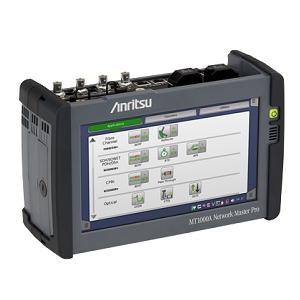

MU100040B-ES510

Optical Time Domain Reflectometer (OTDR) by Anritsu Corporation
45 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Anritsu Corporation.

The MU100040B-ES510 from Anritsu Corporation is a Optical Time Domain Reflectometer (OTDR) with Optical Wavelength 850 to 1310 nm, Operating Current 3.62 to 6.6 A, DC Voltage 18 VDC. More details for MU100040B-ES510 can be seen below.

Product Specifications

Product Details

  • Part Number
    MU100040B-ES510
  • Manufacturer
    Anritsu Corporation
  • Description
    All-in One field tester of B5 size excellent in operability, combined 10G / 100G Ethernet, OTN, SONET/SDH, OTDR, PTP and CPRI modules.

Environmental Conditions

  • Operating Humidity
    Operating: <85%, Storage: <90%
  • Operating Temperature
    0 to 45 Degree C
  • Storage Temperature
    -30 to 60 Degree C

Connections & Interface

  • Interface
    USB, Ethernet, RJ45
  • RF Connector
    BNC, SMA
  • Wireless Interface
    WLAN, Bluetooth

General Parameters

  • Equipment Type
    Handheld
  • Optical Wavelength
    850 to 1310 nm
  • Bandwidth
    5 to 20 MHz
  • Battery Body Material
    Li-ion
  • Battery Capacity
    10.8 V
  • Display
    9-inch active TFT display (800 x 480 pixels) and touch screen
  • Fiber Type
    Single Mode, Multi Mode
  • Battery working and charging time
    4 Hr (Operating), 3 to 6 Hr (Charging)
  • Laser Safety
    Class 1
  • Output Optical Fiber
    3.5 mm (Diameter)
  • Operating Current
    3.62 to 6.6 A
  • Pixel Resolution
    800 x 480 pixels
  • Power Consumption
    <65 to 120 W
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz
  • Warranty
    5 Years
  • DC Voltage
    18 VDC

Applications

  • Application
    Comprehensive OTN Testing, Core Networks Installation/Maintenance, Network troubleshooting, Mobile Backhaul Installation, Powerful Storage Area Networking, Optical Connector Inspection, Automation testing

Physical Properties

  • Dimension
    255 x 164 x 80 mm (W x H x D)
  • Weight
    <2.6 kg
