MU909015B/B1-056

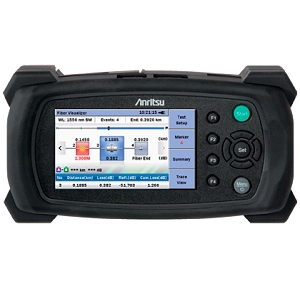

Optical Time Domain Reflectometer (OTDR) by Anritsu Corporation
45 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Anritsu Corporation.

The MU909015B/B1-056 from Anritsu Corporation is a Optical Time Domain Reflectometer (OTDR) with Optical Wavelength 1310 to 1550 nm, Dynamic Range 26 to 37 dB. More details for MU909015B/B1-056 can be seen below.

Product Specifications

Product Details

  • Part Number
    MU909015B/B1-056
  • Manufacturer
    Anritsu Corporation
  • Description
    1310 to 1550 nm Wavelength 26 to 37 dB Dynamic range Handheld OTDR

Environmental Conditions

  • Operating Humidity
    <80%
  • Operating Temperature
    -5 to 40 Degree C

Connections & Interface

  • Interface
    USB

General Parameters

  • Equipment Type
    Handheld
  • Dead Zone(Backscatter)
    <5 m
  • Optical Wavelength
    1310 to 1550 nm
  • Dead zone
    <1 m (Fresnel)
  • Distance Accuracy
    ±1 m ±3 x measurement distance x 10-5 ± marker resolution
  • Fiber Type
    Single Mode
  • IOR Setting
    1.3000 to 1.7000
  • Dynamic Range
    26 to 37 dB
  • Accuracy
    ±0.5 dB
  • Sampling Point
    <125,001 points
  • Sampling Resolution
    5 cm
  • Wavelength accuracy
    ±20 nm

Applications

  • Application
    Real-Time Measurement, Network troubleshooting, Optical Connector Inspection
