MU909015C/C6-059

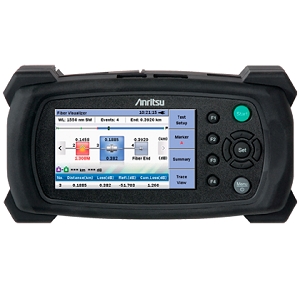

Optical Time Domain Reflectometer (OTDR) by Anritsu Corporation
45 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Anritsu Corporation.

The MU909015C/C6-059 from Anritsu Corporation is a Optical Time Domain Reflectometer (OTDR) with Optical Wavelength 1310 to 1550 nm, Dynamic Range 24 to 36 dB. More details for MU909015C/C6-059 can be seen below.

Product Specifications

Product Details

  • Part Number
    MU909015C/C6-059
  • Manufacturer
    Anritsu Corporation
  • Description
    1310 to 1550 nm Wavelength 24 to 36 dB Dynamic range Handheld OTDR

Environmental Conditions

  • Operating Humidity
    <95%
  • Operating Temperature
    -10 to 50 Degree C

Connections & Interface

  • Interface
    USB

General Parameters

  • Equipment Type
    Handheld
  • Dead Zone(Backscatter)
    <4 to 4.5 m
  • Optical Wavelength
    1310 to 1550 nm
  • Dead zone
    <0.8 m (Fresnel)
  • Distance Accuracy
    ±1 m ±3 x measurement distance x 10-5 ± marker resolution
  • Fiber Type
    Single Mode
  • IOR Setting
    1.3000 to 1.7000
  • Dynamic Range
    24 to 36 dB
  • Accuracy
    ±0.5 dB
  • Sampling Point
    <250,001 points
  • Sampling Resolution
    2 cm
  • Wavelength accuracy
    ±20 nm

Applications

  • Application
    Real-Time Measurement, Network troubleshooting, Optical Connector Inspection
