MU909015C6/14C6

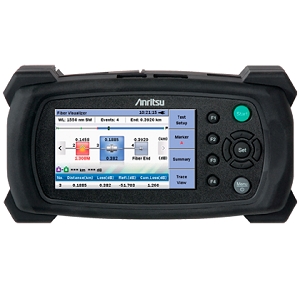

Optical Time Domain Reflectometer (OTDR) by Anritsu Corporation
45 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Anritsu Corporation.

The MU909015C6/14C6 from Anritsu Corporation is a Optical Time Domain Reflectometer (OTDR) with Optical Wavelength 1310 to 1650 nm. More details for MU909015C6/14C6 can be seen below.

Product Specifications

Product Details

  • Part Number
    MU909015C6/14C6
  • Manufacturer
    Anritsu Corporation
  • Description
    1310 to 1650 nm Wavelength Handheld OTDR

Connections & Interface

  • Interface
    USB

General Parameters

  • Equipment Type
    Handheld
  • Optical Wavelength
    1310 to 1650 nm
  • Measurement Range
    -50 to 26 dBm
  • Distance Accuracy
    ±1 m ±3 x measurement distance x 10-5 ± marker resolution
  • Fiber Type
    Single Mode
  • IOR Setting
    1.3000 to 1.7000
  • Output Optical Fiber
    10 to 125 µm (Diameter)
  • Accuracy
    ±0.5 dB
  • Operation Mode
    CW
  • Output Power
    -5 to 1.5 dBm
  • Output Stability
    <0.2 dB
  • Warm up time
    10 min

Applications

  • Application
    Real-Time Measurement, Network troubleshooting, Optical Connector Inspection
