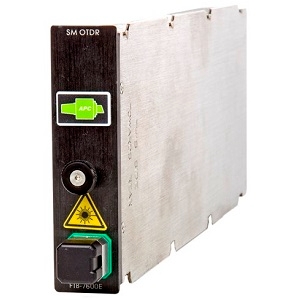

FTB-7600E

Optical Time Domain Reflectometer (OTDR) by EXFO Inc.
16 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to EXFO Inc..

The FTB-7600E from EXFO Inc. is a Optical Time Domain Reflectometer (OTDR) with OTDR Measurement Time 60 minutes, Event Dead Zone 1 m, Attenuation Dead Zone 5 m, Optical Wavelength 1310 to 1625 nm, Dynamic Range 48 to 50.5 dB. More details for FTB-7600E can be seen below.

Product Specifications

Product Details

  • Part Number
    FTB-7600E
  • Manufacturer
    EXFO Inc.
  • Description
    1310 to 1625 nm Wavelength 48 to 50.5 dB Dynamic Range Multifuntional/Modular OTDR

Environmental Conditions

  • Operating Humidity
    0 to 95%
  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -40 to 70 Degree C

Connections & Interface

  • Interface
    USB, Ethernet
  • Wireless Interface
    WiFi, Bluetooth

General Parameters

  • Equipment Type
    Multifuntional/Modular
  • OTDR Measurement Time
    60 minutes
  • Event Dead Zone
    1 m
  • Attenuation Dead Zone
    5 m
  • Optical Wavelength
    1310 to 1625 nm
  • Distance Accuracy
    ±(0.75 + 0.001 % x distance + 0.04 to 10) m (Distance uncertainty)
  • Fiber Type
    Single Mode
  • Linearity
    ±0.03 dB
  • Dynamic Range
    48 to 50.5 dB
  • Loss Resolution
    0.001 dB
  • Loss Threshold
    0.01 dB
  • Pulse Width
    5 to 20000 ns
  • Distance Range
    1.25 to 400 km
  • Output Power
    5 dBm
  • Sampling Point
    Upto 256000 points
  • Sampling Resolution
    0.04 to 10 m
  • Wavelength accuracy
    ±20 nm

Applications

  • Application
    Ultra-longhaul network testing, Submarine cable testing

Physical Properties

  • Dimension
    97 x 25 x 260 mm (H x W x D)
  • Weight
    0.55 kg
