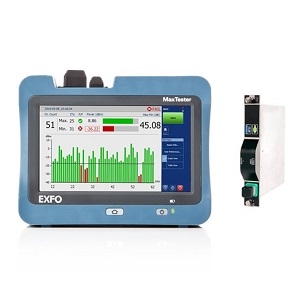

FTBx

Optical Time Domain Reflectometer (OTDR) by EXFO Inc.
16 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to EXFO Inc..

The FTBx from EXFO Inc. is a Optical Time Domain Reflectometer (OTDR) with OTDR Measurement Time <3 seconds, Event Dead Zone 0.7 m, Attenuation Dead Zone 3.5 m, Optical Wavelength 1527.99 to 1567.95 nm, Dynamic Range 40 dB. More details for FTBx can be seen below.

Product Specifications

Product Details

  • Part Number
    FTBx
  • Manufacturer
    EXFO Inc.
  • Description
    1527.99 to 1567.95 nm Wavelength 40 dB Dynamic Range Multifuntional/Modular OTDR

Environmental Conditions

  • Operating Humidity
    0 to 95%
  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 70 Degree C

Connections & Interface

  • Interface
    USB 2.0, LAN, GUI, RJ45

General Parameters

  • Equipment Type
    Multifuntional/Modular
  • OTDR Measurement Time
    <3 seconds
  • Event Dead Zone
    0.7 m
  • Attenuation Dead Zone
    3.5 m
  • Optical Wavelength
    1527.99 to 1567.95 nm
  • Battery Body Material
    Lithium-polymer
  • Data Storage
    2 GB (internal)
  • Display
    7-in (178-mm) outdoor-enhanced touchscreen, 800 x 480 TFT
  • Distance Accuracy
    ±(0.75 + 0.0025 % x distance + 0.04 to 10) m
  • Fiber Type
    Single Mode
  • Battery working and charging time
    8 Hr (Operating)
  • Laser Safety
    Class 2
  • Dynamic Range
    40 dB
  • Modulation
    1 Hz
  • Pulse Width
    5 to 20000 ns
  • Operation Mode
    CW
  • Distance Range
    0.1 to 400 km
  • Pixel Resolution
    800 x 480 pixels
  • Power Range
    -50 to 27 dBm
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz
  • Sampling Point
    Upto 256000 points
  • Sampling Resolution
    0.04 to 10 m

Applications

  • Application
    DWDM link characterization through MUX, DEMUX and OADM, DWDM link troubleshooting, DWDM metro Ethernet links, Deployment of commercial services, Point-to-multipoint

Physical Properties

  • Dimension
    166 x 200 x 68 mm (H x W x D)
  • Weight
    1.5 kg
