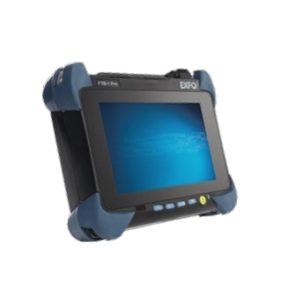

FTBx-730D - PON

Optical Time Domain Reflectometer (OTDR) by EXFO Inc.
16 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to EXFO Inc..

The FTBx-730D - PON from EXFO Inc. is a Optical Time Domain Reflectometer (OTDR) with OTDR Measurement Time 60 minutes, Event Dead Zone 0.5 m, Attenuation Dead Zone 2.2 m, Optical Wavelength 1310 to 1650 nm, Dynamic Range 38 to 39 dB. More details for FTBx-730D - PON can be seen below.

Product Specifications

Product Details

  • Part Number
    FTBx-730D - PON
  • Manufacturer
    EXFO Inc.
  • Description
    1310 to 1650 nm Wavelength 38 to 39 dB Dynamic Range Multifuntional/Modular OTDR

Environmental Conditions

  • Operating Humidity
    0 to 95%
  • Storage Temperature
    -40 to 70 Degree C

Connections & Interface

  • Interface
    USB, Ethernet
  • Wireless Interface
    WiFi, Bluetooth

General Parameters

  • Equipment Type
    Multifuntional/Modular
  • OTDR Measurement Time
    60 minutes
  • Event Dead Zone
    0.5 m
  • Attenuation Dead Zone
    2.2 m
  • Optical Wavelength
    1310 to 1650 nm
  • Distance Accuracy
    ±(0.75 + 0.0025 % x distance + 0.04 to 10) m (Distance uncertainty)
  • Fiber Type
    Single Mode
  • Linearity
    ±0.03 dB
  • Dynamic Range
    38 to 39 dB
  • Loss Resolution
    0.001 dB
  • Loss Threshold
    0.01 dB
  • Pulse Width
    3 to 20000 ns
  • Distance Range
    0.1 to 400 km
  • Output Power
    -1 dBm
  • Power Range
    -60 to 23 dBm
  • Power Uncertainty
    ±0.5 dB
  • Reflectance Accuracy
    ±2 dB
  • Sampling Point
    Upto 256000 points
  • Sampling Resolution
    0.04 to 10 m
  • Wavelength accuracy
    ±20 nm

Applications

  • Application
    FTTx/PON testing through splitters (Upto 1 x 128), Access network testing, Metro links testing, Live fiber troubleshooting, Passive optical LAN

Physical Properties

  • Dimension
    161 x 25 x 189 mm (H x W x D)
  • Weight
    0.4 kg
