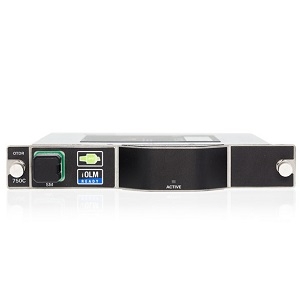

FTBx-750C

Optical Time Domain Reflectometer (OTDR) by EXFO Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to EXFO Inc..

The FTBx-750C from EXFO Inc. is a Optical Time Domain Reflectometer (OTDR) with OTDR Measurement Time 60 minutes, Event Dead Zone 0.5 m, Attenuation Dead Zone 2.5 m, Optical Wavelength 1310 to 1625 nm, Dynamic Range 45 to 46 dB. More details for FTBx-750C can be seen below.

Product Specifications

Product Details

  • Part Number
    FTBx-750C
  • Manufacturer
    EXFO Inc.
  • Description
    1310 to 1625 nm Wavelength 45 to 46 dB Dynamic Range Multifuntional/Modular OTDR

Environmental Conditions

  • Operating Humidity
    0 to 95%
  • Storage Temperature
    -40 to 70 Degree C

Connections & Interface

  • Interface
    USB 2, Ethernet
  • Wireless Interface
    WiFi, Bluetooth

General Parameters

  • Equipment Type
    Multifuntional/Modular
  • OTDR Measurement Time
    60 minutes
  • Event Dead Zone
    0.5 m
  • Attenuation Dead Zone
    2.5 m
  • Optical Wavelength
    1310 to 1625 nm
  • Distance Accuracy
    ±(0.75 + 0.0025 % x distance + 0.04 to 10) m (Distance uncertainty)
  • Fiber Type
    Single Mode
  • Linearity
    ±0.03 dB
  • Dynamic Range
    45 to 46 dB
  • Loss Resolution
    0.001 dB
  • Loss Threshold
    0.01 dB
  • Pulse Width
    3 to 20000 ns
  • Distance Range
    0.1 to 400 km
  • Output Power
    -2.5 to 1.5 dBm
  • Reflectance Accuracy
    ±2 dB
  • Sampling Point
    Upto 256000 points
  • Sampling Resolution
    0.04 to 10 m
  • Wavelength accuracy
    ±20 nm

Applications

  • Application
    Metro network testing, Long-haul network testing, Manufacturing automation

Physical Properties

  • Dimension
    158 x 24 x 174 mm (H x W x D)
  • Weight
    0.4 kg
