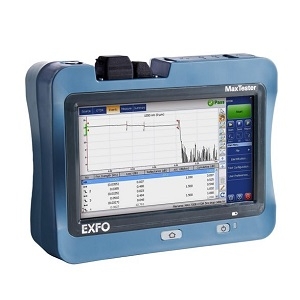

MaxTester 715B

Optical Time Domain Reflectometer (OTDR) by EXFO Inc.
16 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to EXFO Inc..

The MaxTester 715B from EXFO Inc. is a Optical Time Domain Reflectometer (OTDR) with OTDR Measurement Time User-defined, Event Dead Zone 1 m, Attenuation Dead Zone 4 m, Optical Wavelength 1310 to 1625 nm, Dynamic Range 28 to 30 dB. More details for MaxTester 715B can be seen below.

Product Specifications

Product Details

  • Part Number
    MaxTester 715B
  • Manufacturer
    EXFO Inc.
  • Description
    1310 to 1625 nm Wavelength 28 to 30 dB Dynamic Range Handheld OTDR

Environmental Conditions

  • Operating Humidity
    0 to 95%
  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 70 Degree C

Connections & Interface

  • Interface
    USB 2.0, LAN, RJ45
  • Wireless Interface
    WiFi, Bluetooth

General Parameters

  • Equipment Type
    Handheld
  • OTDR Measurement Time
    User-defined
  • Event Dead Zone
    1 m
  • Attenuation Dead Zone
    4 m
  • Optical Wavelength
    1310 to 1625 nm
  • Battery Body Material
    Lithium-polymer
  • Data Storage
    2 GB (internal)
  • Display
    7-in (178-mm) outdoor-enhanced touchscreen, 800 x 480 TFT
  • Display Resolution
    0.01 to 0.1 dB
  • Distance Accuracy
    ±(0.75 + 0.005 % x distance + 0.04 to 5) m (Distance uncertainty)
  • Fiber Type
    Single Mode
  • Battery working and charging time
    12 Hr (Operating)
  • Laser Safety
    Class 2
  • Linearity
    ±0.05 dB
  • Dynamic Range
    28 to 30 dB
  • Loss Resolution
    0.001 dB
  • Loss Threshold
    0.01 dB
  • Modulation
    1 to 2 kHz
  • Pulse Width
    5 to 20000 ns
  • Operation Mode
    CW
  • Distance Range
    0.1 to 160 km
  • Output Power
    -11.5 dBm
  • Pixel Resolution
    800 x 480 pixels
  • Power Range
    -50 to 27 dBm
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz
  • Reflectance Accuracy
    ±2 dB
  • Sampling Point
    Upto 256000 points
  • Sampling Resolution
    0.04 to 5 m
  • DC Voltage
    9 to 16 VDC
  • Wavelength accuracy
    ±30 nm

Applications

  • Application
    FTTx last-mile installation and troubleshooting, Short access-network testing, FTTA fiber-DAS installations, CATV/HFC network testing

Physical Properties

  • Dimension
    158 x 200 x 68 mm (H x W x D)
  • Weight
    1.29 kg
