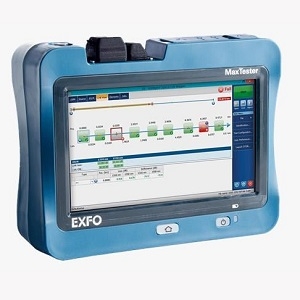

MaxTester 715D

Optical Time Domain Reflectometer (OTDR) by EXFO Inc.
16 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to EXFO Inc..

The MaxTester 715D from EXFO Inc. is a Optical Time Domain Reflectometer (OTDR) with OTDR Measurement Time User-defined, Event Dead Zone 0.9 m, Attenuation Dead Zone 3.6 m, Optical Wavelength 1310 to 1650 nm, Dynamic Range 30 to 32 dB. More details for MaxTester 715D can be seen below.

Product Specifications

Product Details

  • Part Number
    MaxTester 715D
  • Manufacturer
    EXFO Inc.
  • Description
    1310 to 1650 nm Wavelength 30 to 32 dB Dynamic range Handheld OTDR

Environmental Conditions

  • Operating Humidity
    0 to 95%
  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 70 Degree C

Connections & Interface

  • Interface
    USB 2.0, LAN, RJ45

General Parameters

  • Equipment Type
    Handheld
  • OTDR Measurement Time
    User-defined
  • Event Dead Zone
    0.9 m
  • Attenuation Dead Zone
    3.6 m
  • Optical Wavelength
    1310 to 1650 nm
  • Data Storage
    2 GB (internal)
  • Display
    7-in (178-mm) outdoor-enhanced touchscreen, 800 x 480 TFT
  • Distance Accuracy
    ±(0.75 + 0.005 % x distance + 0.04 to 5) m (Distance uncertainty)
  • Fiber Type
    Single Mode
  • Linearity
    ±0.05 dB
  • Dynamic Range
    30 to 32 dB
  • Loss Resolution
    0.001 dB
  • Loss Threshold
    0.01 dB
  • Modulation
    1 to 2 kHz
  • Pulse Width
    3 to 20000 ns
  • Operation Mode
    CW
  • Distance Range
    0.1 to 200 km
  • Output Power
    -8 dBm
  • Pixel Resolution
    800 x 480 pixels
  • Power Range
    -60 to 23 dBm
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz
  • Power Uncertainty
    ±0.5 dB
  • Reflectance Accuracy
    ±2 dB
  • Sampling Point
    Upto 256000 points
  • Sampling Resolution
    0.04 to 5 m
  • Warranty
    3 Years
  • DC Voltage
    9 to 16 VDC
  • Wavelength accuracy
    ±30 nm

Applications

  • Application
    FTTx last-mile installation and troubleshooting, Short access-network testing, FTTA fiber-DAS installations, CATV/HFC network testing

Physical Properties

  • Dimension
    166 x 200 x 68 mm (H x W x D)
  • Weight
    1.5 kg
