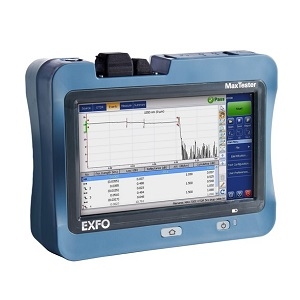

MaxTester 720C

Optical Time Domain Reflectometer (OTDR) by EXFO Inc.
16 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to EXFO Inc..

The MaxTester 720C from EXFO Inc. is a Optical Time Domain Reflectometer (OTDR) with OTDR Measurement Time User-defined, Event Dead Zone SM: 0.7 m, MM: 0.5 m, Attenuation Dead Zone SM: 3 m, MM: 2.5 m, Optical Wavelength 850 to 1625 nm, Dynamic Range 27 to 36 dB. More details for MaxTester 720C can be seen below.

Product Specifications

Product Details

  • Part Number
    MaxTester 720C
  • Manufacturer
    EXFO Inc.
  • Description
    850 to 1625 nm Wavelength 27 to 36 dB Dynamic Range Multifuntional/Modular OTDR

Environmental Conditions

  • Operating Humidity
    0 to 95%
  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 70 Degree C

Connections & Interface

  • Interface
    USB 2.0, LAN, Ethernet, RJ45
  • Wireless Interface
    WiFi, Bluetooth

General Parameters

  • Equipment Type
    Multifuntional/Modular
  • OTDR Measurement Time
    User-defined
  • Event Dead Zone
    SM: 0.7 m, MM: 0.5 m
  • Attenuation Dead Zone
    SM: 3 m, MM: 2.5 m
  • Optical Wavelength
    850 to 1625 nm
  • Battery Body Material
    Lithium-polymer
  • Data Storage
    2 GB (internal)
  • Display
    7-in (178-mm) outdoor-enhanced touchscreen, 800 x 480 TFT
  • Distance Accuracy
    ±(0.75 + 0.0025 % x distance + 0.04 to 10) m (Distance uncertainty)
  • Fiber Type
    Single Mode, Multi Mode
  • Battery working and charging time
    12 Hr (Operating)
  • Laser Safety
    Class 2
  • Linearity
    ±0.03 dB
  • Dynamic Range
    27 to 36 dB
  • Loss Resolution
    0.001 dB
  • Loss Threshold
    0.01 dB
  • Modulation
    330 Hz to 2 kHz
  • Pulse Width
    3 to 1000 ns (MM), 3 to 20000 ns (SM)
  • Operation Mode
    CW
  • Distance Range
    SM: 0.1 to 260 km, MM: 0.1 to 40 km
  • Output Power
    -6 dBm (SM), -3 dBm (MM)
  • Pixel Resolution
    800 x 480 pixels
  • Power Range
    -50 to 27 dBm
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz
  • Reflectance Accuracy
    ±2 dB
  • Sampling Point
    Upto 256000 points
  • Sampling Resolution
    SM: 0.04 to 10 m, MM: 0.04 to 5 m
  • Wavelength accuracy
    ±20 nm

Applications

  • Application
    Access network construction and troubleshooting, FTTx/PON testing through splitters (Upto 1x32), Central office link certification, Data center and private networks, LAN/WAN characterization

Physical Properties

  • Dimension
    166 x 200 x 68 mm (H x W x D)
  • Weight
    1.5 kg
