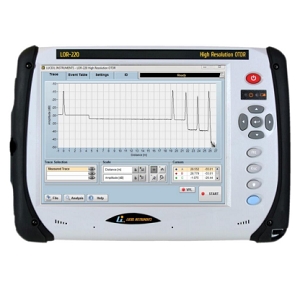

LOR-220 POF

Optical Time Domain Reflectometer (OTDR) by Luciol Instruments
5 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Luciol Instruments.

The LOR-220 POF from Luciol Instruments is a Optical Time Domain Reflectometer (OTDR) with Attenuation Dead Zone <1 mm to 40 cm, Optical Wavelength 520 to 650 nm, Dynamic Range >20 dB, Pulse Width 1 ns, Distance Range 0.5 km. More details for LOR-220 POF can be seen below.

Product Specifications

Product Details

  • Part Number
    LOR-220 POF
  • Manufacturer
    Luciol Instruments
  • Description
    520 to 650 nm Wavelength >20 dB Dynamic Range Multifuntional/Modular OTDR

Environmental Conditions

  • Operating Humidity
    <80%
  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -20 to 60 Degree C

Connections & Interface

  • Interface
    Ethernet, USB 3.0, HDMI, Headphone/Microphone
  • Optical Connector
    SMA, ST
  • Wireless Interface
    WIFI/Bluetooth

General Parameters

  • Equipment Type
    Multifuntional/Modular
  • Attenuation Dead Zone
    <1 mm to 40 cm
  • Optical Wavelength
    520 to 650 nm
  • Battery Body Material
    Li-ion
  • Battery Capacity
    6.2 Ah
  • Data Storage
    4 GB RAM, 120 GB SSD
  • Display
    Touchscreen TFT 10.4 Inches (800x600)
  • Battery working and charging time
    5 Hr (Operating), 3.5 Hr (Charging)
  • Dynamic Range
    >20 dB
  • Output Optical Fiber
    1 mm (diameter)
  • Pulse Width
    1 ns
  • Distance Range
    0.5 km
  • Operating Current
    4 A
  • Pixel Resolution
    800 x 600 pixels
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz
  • Sampling Resolution
    2.5 cm
  • DC Voltage
    15 VDC
  • Wavelength accuracy
    ±10 nm

Applications

  • Application
    Fiber, cable manufacturing, Characterization, monitoring, troubleshooting of fiber assemblies

Physical Properties

  • Dimension
    320 x 240 x 90 mm
  • Weight
    3.1 kg
