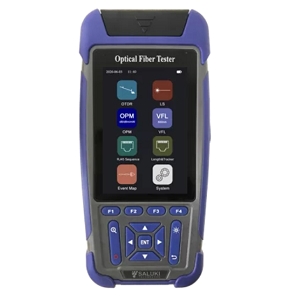

S2103S

Optical Time Domain Reflectometer (OTDR) by Saluki Technology
68 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Saluki Technology.

The S2103S from Saluki Technology is a Optical Time Domain Reflectometer (OTDR) with Event Dead Zone 2.5 m, Attenuation Dead Zone 8 m, Optical Wavelength 1550 nm, Dynamic Range 24 dB, Pulse Width 3 ns to 10 µs. More details for S2103S can be seen below.

Product Specifications

Product Details

  • Part Number
    S2103S
  • Manufacturer
    Saluki Technology
  • Description
    1550 nm Wavelength Range 24 dB Dynamic Range Handheld, Multifuntional/Modular OTDR

Environmental Conditions

  • Operating Humidity
    0 to 95%
  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 70 Degree C

Connections & Interface

  • Interface
    Micro USB, RJ45
  • Optical Connector
    FC, SC, ST

General Parameters

  • Equipment Type
    Handheld, Multifuntional/Modular
  • Event Dead Zone
    2.5 m
  • Attenuation Dead Zone
    8 m
  • Optical Wavelength
    1550 nm
  • Battery Body Material
    Lithium
  • Battery Capacity
    3.7 V / 4000 mAh
  • Measurement Range
    -50 to 26 dBm
  • Display
    3.5 inch color LCD screen
  • Distance Accuracy
    ± (1m + ± 3 x Measurement distance x 10-5 ± sampling resolution)
  • Battery working and charging time
    >20 (Standby), 12 Hr (Measuring time)
  • Laser Safety
    Class II
  • Dynamic Range
    24 dB
  • Loss Accuracy
    ±0.2 dB
  • Memory Capacity
    >1000 Curves
  • Modulation
    270 Hz to 2 kHz
  • Pulse Width
    3 ns to 10 µs
  • Operation Mode
    CW
  • Distance Range
    100 m to 100 km (test range)
  • Output Power
    >-2 dBm
  • Output Stability
    ±0.5 dB
  • Power Uncertainty
    ±5% (Uncertainty)
  • Reflectance Accuracy
    ±3 dB
  • Sampling Point
    16000 to 128000 points
  • Sampling Resolution
    0.05 to 8 m
  • VFL Output Power
    >10 mW
  • VFL(Launching Mode)
    CW/1 to 2 Hz
  • Wavelength accuracy
    ±20 nm

Applications

  • Application
    FTTx test, Broadband install and maintain, CATV network testing, Access network testing, LAN network testing, Metro network testing, Lab and factory testing, Live fiber troubleshooting

Physical Properties

  • Dimension
    173 x 82 x 37 mm
  • Weight
    <350 g
