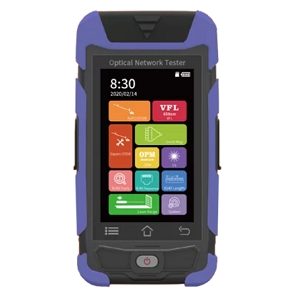

S2105-P2F1

Optical Time Domain Reflectometer (OTDR) by Saluki Technology
68 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Saluki Technology.

The S2105-P2F1 from Saluki Technology is a Optical Time Domain Reflectometer (OTDR) with Event Dead Zone 1.2 m, Attenuation Dead Zone 5 m, Optical Wavelength 1650 nm, Dynamic Range 26 dB, Pulse Width 3 ns to 20 µs. More details for S2105-P2F1 can be seen below.

Product Specifications

Product Details

  • Part Number
    S2105-P2F1
  • Manufacturer
    Saluki Technology
  • Description
    1650 nm Wavelength Range 26 dB Dynamic Range Multifuntional/Modular OTDR

Environmental Conditions

  • Operating Humidity
    0 to 95%
  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 70 Degree C

Connections & Interface

  • Interface
    USB, RJ45
  • Optical Connector
    FC, SC, ST

General Parameters

  • Equipment Type
    Multifuntional/Modular
  • Event Dead Zone
    1.2 m
  • Attenuation Dead Zone
    5 m
  • Optical Wavelength
    1650 nm
  • Battery Body Material
    Lithium
  • Battery Capacity
    3.7 V / 4000 mAh
  • Data Storage
    8 GB (Internal)
  • Measurement Range
    -70 to 26 dBm
  • Display
    4.3 inch 800x480 IPS TFT-LCD
  • Display Resolution
    0.01 dB
  • Distance Accuracy
    ± (1m + Sampling interval + 0.005% x Test distance)
  • Distance Resolution
    0.001 m
  • Fiber Type
    Single Mode
  • IOR Setting
    1.00000 to 2.00000
  • Battery working and charging time
    8 Hr (Operating)
  • Laser Safety
    Class II
  • Linearity
    <0.05 dB
  • Dynamic Range
    26 dB
  • Loss Resolution
    0.001 dB
  • Loss Threshold
    0.01 dB
  • Memory Capacity
    >200000 Curves
  • Modulation
    270 Hz to 2 kHz
  • Pulse Width
    3 ns to 20 µs
  • Operation Mode
    CW
  • Distance Range
    500 m to 100 km (test range)
  • Operating Current
    0.6 to 2 A
  • Output Power
    >-5 dBm
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz
  • Power Uncertainty
    ±5% (Uncertainty)
  • Reflectance Accuracy
    ±3 dB
  • Sampling Point
    16000 to 256000 points
  • Sampling Resolution
    0.05 to 8 m
  • DC Voltage
    5 VDC
  • VFL Output Power
    >10 mW
  • VFL(Launching Mode)
    CW/1 to 2 Hz

Applications

  • Application
    FTTx test, CATV Network Testing, Access Network Testing, LAN Network Testing, Metro Network Testing, Lab and Factory Testing, Live Fiber Troubleshooting

Physical Properties

  • Dimension
    174 x 92 x 45 mm
  • Weight
    0.4 kg
