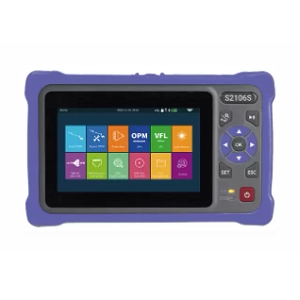

S2106S-S2

Optical Time Domain Reflectometer (OTDR) by Saluki Technology
68 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Saluki Technology.

The S2106S-S2 from Saluki Technology is a Optical Time Domain Reflectometer (OTDR) with Event Dead Zone 2.5 m, Attenuation Dead Zone 8 m, Optical Wavelength 1550 nm, Dynamic Range 24 dB, Pulse Width 3 ns to 20 µs. More details for S2106S-S2 can be seen below.

Product Specifications

Product Details

  • Part Number
    S2106S-S2
  • Manufacturer
    Saluki Technology
  • Description
    1550 nm Wavelength Range 24 dB Dynamic Range Multifuntional/Modular OTDR

Environmental Conditions

  • Operating Humidity
    0 to 95%
  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 70 Degree C

Connections & Interface

  • Interface
    USB, RJ45
  • Optical Connector
    FC, SC, ST

General Parameters

  • Equipment Type
    Multifuntional/Modular
  • Event Dead Zone
    2.5 m
  • Attenuation Dead Zone
    8 m
  • Optical Wavelength
    1550 nm
  • Battery Body Material
    Lithium
  • Battery Capacity
    3.7V / 4000 mAh
  • Data Storage
    8 GB
  • Measurement Range
    -70 to 26 dBm
  • Display
    4.3 inch 800 x 480 IPS TFT-LCD
  • Display Resolution
    <0.01 dB
  • Distance Accuracy
    ± (1m + Sample interval + 0.005% x Test distance)
  • Distance Resolution
    0.001 m (Range Resolution)
  • Fiber Type
    Single Mode
  • IOR Setting
    1.00000 to 2.00000
  • Battery working and charging time
    20 Hr (Operating)
  • Laser Safety
    Class II
  • Linearity
    <0.05 dB
  • Dynamic Range
    24 dB
  • Loss Resolution
    0.001 dB
  • Loss Threshold
    0.2 dB
  • Memory Capacity
    >200000 Curves
  • Modulation
    270 Hz to 2 kHz
  • Pulse Width
    3 ns to 20 µs
  • Operation Mode
    CW
  • Distance Range
    500 m to 100 km (test range)
  • Operating Current
    0.6 to 2 A
  • Output Power
    >-5 dBm
  • Output Stability
    ±0.5 dB
  • Pixel Resolution
    800 x 480 pixels
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz
  • Power Uncertainty
    ±5% (Uncertainty)
  • Reflectance Accuracy
    ±3 dB
  • Sampling Point
    16000 to 128000 points
  • Sampling Resolution
    0.05 to 8 m
  • DC Voltage
    5 VDC
  • VFL Output Power
    >10 mW
  • VFL(Launching Mode)
    CW/1 to 2 Hz
  • Wavelength accuracy
    ±20 nm

Applications

  • Application
    FTTx test, CATV Network Testing, Access Network Testing, LAN Network Testing, Metro Network Testing, Lab and Factory Testing, Live Fiber Troubleshooting

Physical Properties

  • Dimension
    173 x 109 x 45 mm
  • Weight
    <0.5 kg
