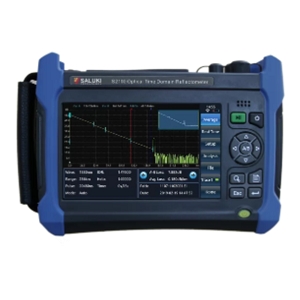

S2110P-3105

Optical Time Domain Reflectometer (OTDR) by Saluki Technology
68 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Saluki Technology.

The S2110P-3105 from Saluki Technology is a Optical Time Domain Reflectometer (OTDR) with Event Dead Zone 1.5 m, Attenuation Dead Zone 8 m, Optical Wavelength 1310 to 1650 nm, Dynamic Range 42 to 45 dB, Pulse Width 3 to 20480 ns. More details for S2110P-3105 can be seen below.

Product Specifications

Product Details

  • Part Number
    S2110P-3105
  • Manufacturer
    Saluki Technology
  • Description
    1310 to 1650 nm Wavelength Range 42 to 45 dB Dynamic Range Multifuntional/Modular OTDR

Environmental Conditions

  • Operating Humidity
    5 to 95%
  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 70 Degree C

Connections & Interface

  • Interface
    USB, Micro-USB, Ethernet, Earphone, Micro SD
  • Optical Connector
    FC, SC, ST

General Parameters

  • Equipment Type
    Multifuntional/Modular
  • Event Dead Zone
    1.5 m
  • Attenuation Dead Zone
    8 m
  • Optical Wavelength
    1310 to 1650 nm
  • Battery Body Material
    Lithium
  • Battery Capacity
    11.1 V / 6800 mAh
  • Data Storage
    8 GB (Internal)
  • Display
    800x480, 7-inch TFT color LCD capacitive touch screen
  • Distance Accuracy
    ±(0.75+ sample interval+0.0025% x test distance)
  • Fiber Type
    Single Mode
  • IOR Setting
    1.00000 to 1.99999
  • Battery working and charging time
    8 Hr (Operating)
  • Linearity
    0.03 dB
  • Dynamic Range
    42 to 45 dB
  • Loss Resolution
    0.001 dB
  • Modulation
    270 Hz to 2 kHz
  • Pulse Width
    3 to 20480 ns
  • Operation Mode
    CW
  • Distance Range
    0.4 to 512 km (test range)
  • Operating Current
    2 A
  • Output Power
    >-5 dBm
  • Power Consumption
    10 W
  • Power Range
    -60 to 0 dBm
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz
  • Power Uncertainty
    ±5% (Uncertainty)
  • Sampling Point
    256000 points
  • Sampling Resolution
    0.05 to 32 m
  • DC Voltage
    14 to 20 VDC
  • VFL Output Power
    2 mW
  • VFL(Launching Mode)
    CW, 1 to 2 kHz
  • Wavelength accuracy
    ±25 nm

Applications

  • Application
    FTTx test, CATV Network Testing, Access Network Testing, LAN Network Testing, Metro Network Testing, Lab and Factory Testing, Live Fiber Troubleshooting

Physical Properties

  • Dimension
    252 x 180 x 55 mm (W x H x D)
  • Weight
    1.8 kg
