S2112-T1

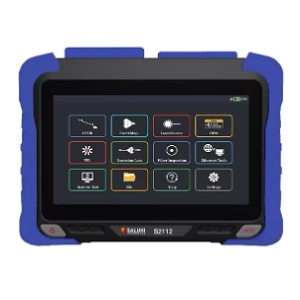

Optical Time Domain Reflectometer (OTDR) by Saluki Technology
68 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Saluki Technology.

The S2112-T1 from Saluki Technology is a Optical Time Domain Reflectometer (OTDR) with Event Dead Zone 0.8 m, Attenuation Dead Zone 4 m, Optical Wavelength 1310 to 1550 nm, Dynamic Range 30 to 32 dB, Pulse Width 3 to 20000 ns. More details for S2112-T1 can be seen below.

Product Specifications

Product Details

  • Part Number
    S2112-T1
  • Manufacturer
    Saluki Technology
  • Description
    1310 to 1550 nm Wavelength Range 30 to 32 dB Dynamic Range Multifuntional/Modular OTDR

Environmental Conditions

  • Operating Humidity
    0 to 95%
  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 70 Degree C

Connections & Interface

  • Interface
    USB, RJ45
  • Optical Connector
    FC, SC, ST
  • Wireless Interface
    LAN

General Parameters

  • Equipment Type
    Multifuntional/Modular
  • Event Dead Zone
    0.8 m
  • Attenuation Dead Zone
    4 m
  • Optical Wavelength
    1310 to 1550 nm
  • Battery Body Material
    Lithium
  • Battery Capacity
    3.7 V / 10400 mAh
  • Data Storage
    2 GB (internal), 64 GB (External)
  • Measurement Range
    -70 to 26 dBm
  • Display
    7 inch color LCD touch screen, Resolution 800 x 480
  • Distance Accuracy
    ±(0.75m + Sampling interval + 0.0025% x Test distance)
  • Fiber Type
    Single Mode
  • Laser Safety
    Class II
  • Dynamic Range
    30 to 32 dB
  • Loss Accuracy
    0.03 dB
  • Loss Resolution
    ±0.001 dB
  • Loss Threshold
    0.01 dB
  • Modulation
    270 Hz to 2 kHz
  • Pulse Width
    3 to 20000 ns
  • Operation Mode
    CW
  • Distance Range
    0.1 to 420 km (test range)
  • Operating Current
    1.5 to 3 A
  • Output Power
    >-5 dBm
  • Output Stability
    ±0.5 dB
  • Pixel Resolution
    800 x 480 pixels
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz
  • Power Uncertainty
    ±5% (Uncertainty)
  • Reflectance Accuracy
    ±2 dB
  • Sampling Point
    >256000 points
  • Sampling Resolution
    0.015 to 16 m
  • DC Voltage
    5 to 12 VDC
  • VFL(Launching Mode)
    CW/1 to 2 Hz

Applications

  • Application
    FTTx Test, CATV Network Testing, Access Network Testing, LAN Network Testing, Metro Network Testing, Lab and Factory Testing, Live Fiber Troubleshooting

Physical Properties

  • Dimension
    215 x 160 x 50 mm
  • Weight
    <1.2 kg
